Load-Bearing Analysis of Aluminum Alloy Trusses

1. Material Properties of Aluminum Alloys

Aluminum alloys are widely used in truss structures due to their high strength-to-weight ratio, corrosion resistance, and ductility. Key mechanical properties relevant to load-bearing analysis include:

· Young's modulus (E): Typically 69-71 GPa, determining the material’s stiffness under load.

· Yield strength (σ_y): Ranges from 100-400 MPa depending on the alloy (e.g., 6061-T6: ~276 MPa; 7075-T6: ~505 MPa), defining the critical stress for plastic deformation.

· Density (ρ): ~2.7 g/cm³, significantly lower than steel (~7.85 g/cm³), reducing self-weight and dynamic load effects.

· Fatigue strength: Important for cyclic loading scenarios, usually specified at 10⁷ cycles (e.g., ~140 MPa for 6061-T6).

2. Truss Structure Types and Load Distribution

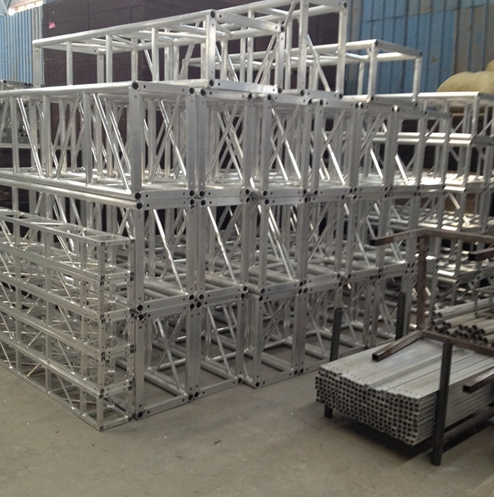

Aluminum trusses are commonly designed in configurations such as:

· Triangular truss: The simplest stable structure, distributing loads via axial forces (tension/compression) in members.

· Parallel chord truss: Suitable for long spans, with top and bottom chords resisting bending moments and vertical web members handling shear forces.

· Cantilever truss: Used for overhanging structures, requiring additional bracing to counteract moment reactions.

Load types considered in analysis:

· Dead load (DL): Self-weight of the truss and permanent attachments (e.g., cladding, fixtures).

· Live load (LL): Temporary loads from personnel, equipment, or movable objects (e.g., snow, wind, seismic forces).

· Dynamic load: Induced by vibrations, impacts, or moving loads (e.g., crane operations).

3. Analytical Methods for Load-Bearing Capacity

3.1 Static Equilibrium Analysis

· Method of joints: Solves for axial forces in each member by applying force equilibrium (ΣFₓ=0, ΣFᵧ=0) at each node.

· Method of sections: Cuts through the truss to analyze internal forces in specific members using moment and force balance.

3.2 Finite Element Method (FEM)

· Utilizes software (e.g., ANSYS, ABAQUS) to model:

· Member discretization into elements (e.g., beam elements for truss members).

· Boundary conditions (pin supports, fixed ends).

· Stress distribution, deformation, and safety factors under combined loads.

3.3 Key Formulas

· Axial stress in a member:σ=AF(where F=axial force, A=cross-sectional area)

· Deflection under axial load:δ=AEFL

· Safety factor (SF) against yielding:SF=σmaxσy(typically SF≥1.5−2.0 for structural design)

4. Design Considerations and Standards

· Code compliance:

· American Society of Civil Engineers (ASCE) 7 for load criteria.

· Aluminum Association (AA) Manual of Aluminum Construction for material design values.

· International Building Code (IBC) for structural safety requirements.

· Joint design: Critical for load transfer, including:

· Welded joints (requires heat treatment to maintain alloy properties).

· Bolted connections (considering shear and tensile stresses in fasteners).

· Riveted joints (suitable for low-stress applications).

· Buckling prevention: Slender members (high length-to-radius ratio) are prone to Euler buckling; use effective length factors (K) and section modulus optimization.

5. Case Study: Typical Span Analysis

For a 15-meter span aluminum truss (6061-T6, triangular configuration):

· Dead load: 2.5 kN/m (truss self-weight + cladding).

· Live load: 1.5 kN/m (snow + personnel).

· Maximum axial force in bottom chord: ~45 kN (tension).

· Safety check:σ=1200×10−645×103=37.5MPa<σy(276MPa),SF=37.5276≈7.36(safe)

6. Practical Limitations and Mitigation

· Creep deformation: At elevated temperatures (>100°C), aluminum may exhibit time-dependent strain; use heat-resistant alloys (e.g., 2024-T6).

· Galvanic corrosion: Avoid direct contact with steel components; apply insulating gaskets or protective coatings.

· Dynamic effects: For structures subjected to vibrations, perform modal analysis to avoid resonance.

This analysis framework integrates material science, structural mechanics, and engineering standards to ensure safe and efficient design of aluminum alloy trusses. For specific projects, detailed finite element modeling and site-specific load calculations are recommended.
